SLB-EXT motor connection help - Please

SuperLongBoard ❓Question
1

Hello Everyone, while I’ve put together several CNC machines now I, ve never worked with Closed loop Steppers and without drivers.

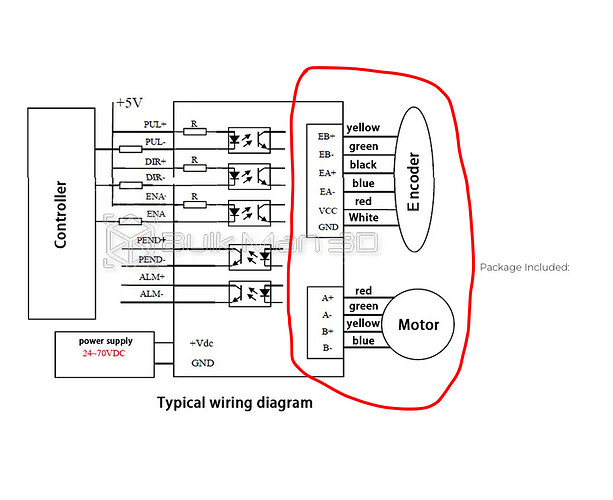

Screenshot 2026-04-14 at 3.59.52 PM
Screenshot 2026-04-14 at 3.59.52 PM1056×861 106 KB

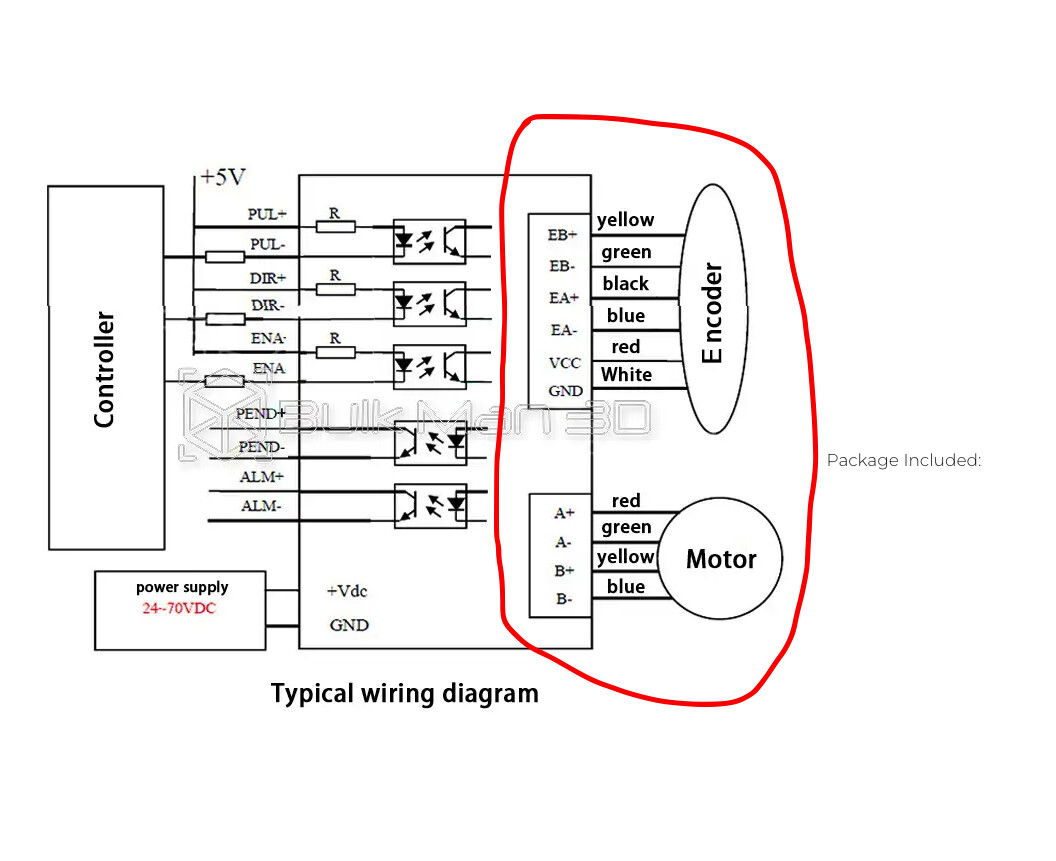

This is where i’m now stumped, attached is the wiring from my closed Loop Steepers, Im at a loss as to get the correct pins to connect too on the SLB-EXT, I do have all the necessary plugs for the SLB_EXT.

Would someone take the time to help me out?

I have searched without success, or maybe Ive just missed it.
I really could do with some help.

EDIT: Ive just noticed my stepper motors dont have dip switches, I suspect his could be a problem for me , damn!

Thanks in advance…

Shayne (New Zealand)

2

@RiceyNZ Welcome to the forum. Did you take a look at the SLB documentation to see if the information you require is there?

3

My Mistake, I’ve just ordered the external drivers needed. I feel like a bit of a fool.

Thanks for taking the time
