5V and 24V SLB-EXT Outputs ~0V

Community Support ❓ Something's Up
1

Hello!

I’ve tried one two separate occasions to use power off the board (it’s getting plenty considering that power supply!), once to get 24V, and once to get 5V off of these locations on the board (screenshot)

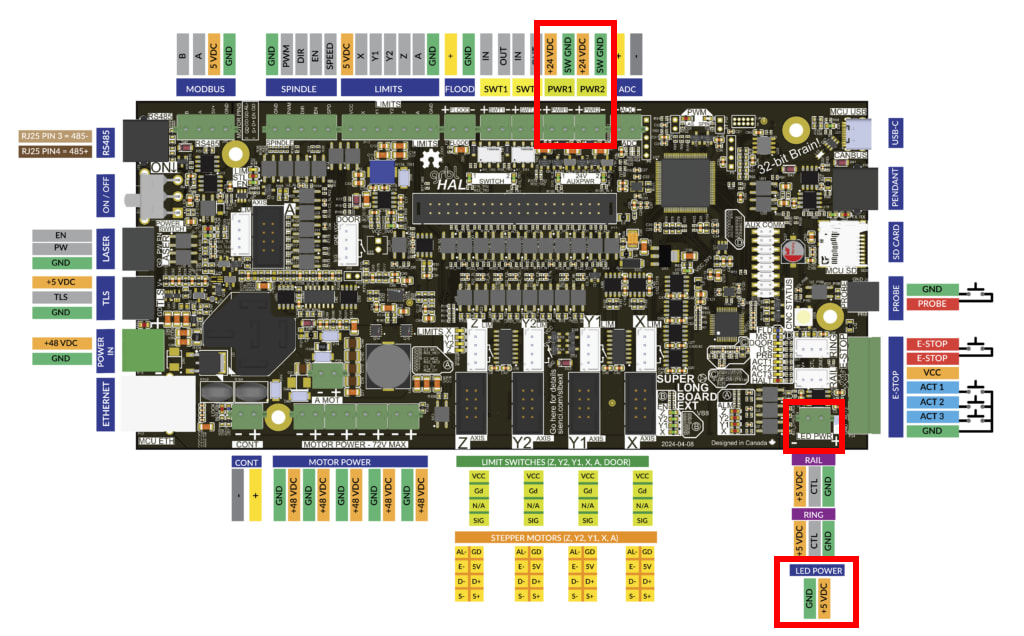

image1024×636 215 KB

and I’m getting nada. ~0V.

I can see that the pinout seems to suggest switched ground on 24V, fine, maybe I don’t know where to turn it on. But the 5V plug is just for LEDs! Still 0. I find this concerning even if the machine otherwise works fine.

Maybe this is just user-error, but documentation on the control-board itself is really.. really sparse. Do we even know the current limit on this port? I was about to draw ~4A.

Any help is appreciated!

2

@AberrantAberrant Welcome to the group. Have you read the tech manual for the SLB? I realize that there are differences between it and the SLB-ext that you have, but it may be worth looking at it.
